Adding Slave Unit

In order to add slave unit, go to Configuration -- Setting --Vending page.

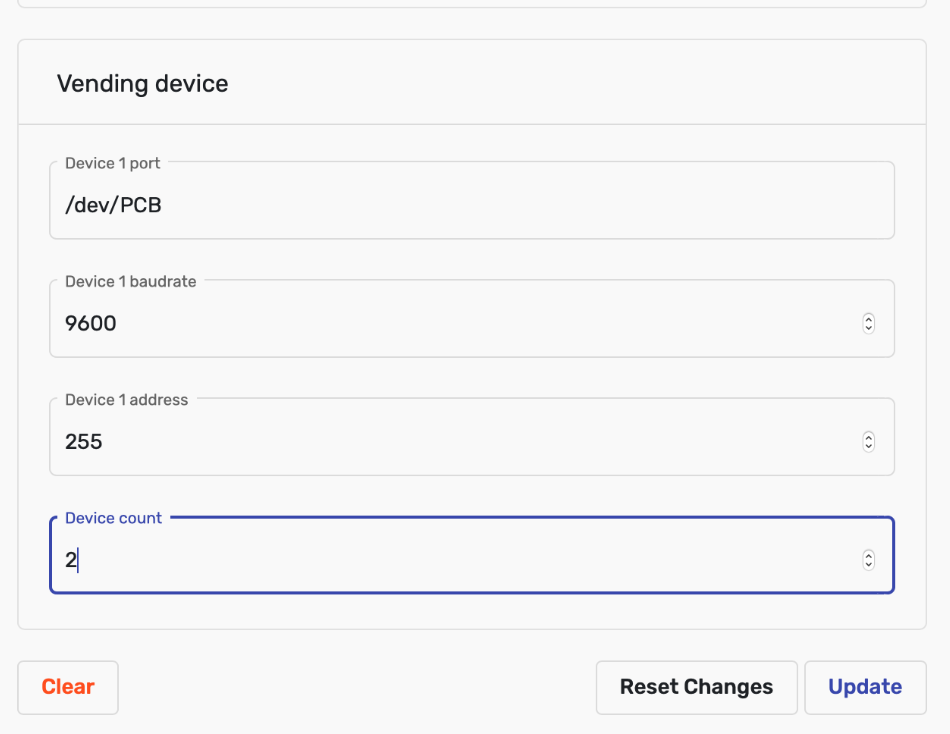

Change device count from 1 to 2 and press Update.

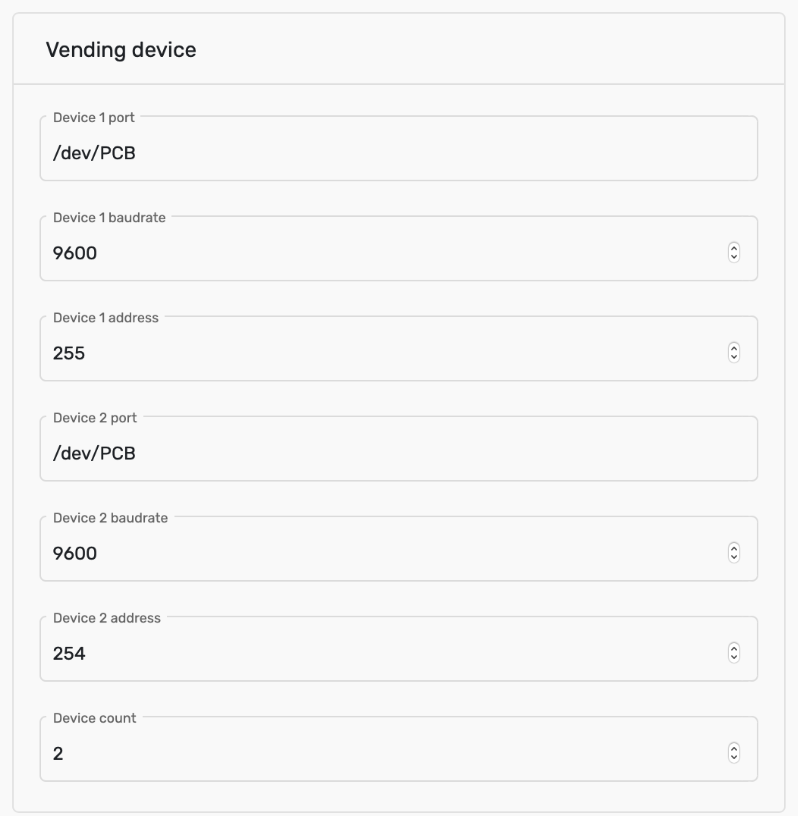

New fields for second device (slave) will appear. Fill as follows:

1) Device 2 port - /dev/PCB

2) Device 2 baudrate -- 9600

3) Device 2 address -- 254

Press update and then go to System and restart application.

After restart go to Configuration -- Device and configure 2nd unit.

All further configuration process is described in the Devices section.
