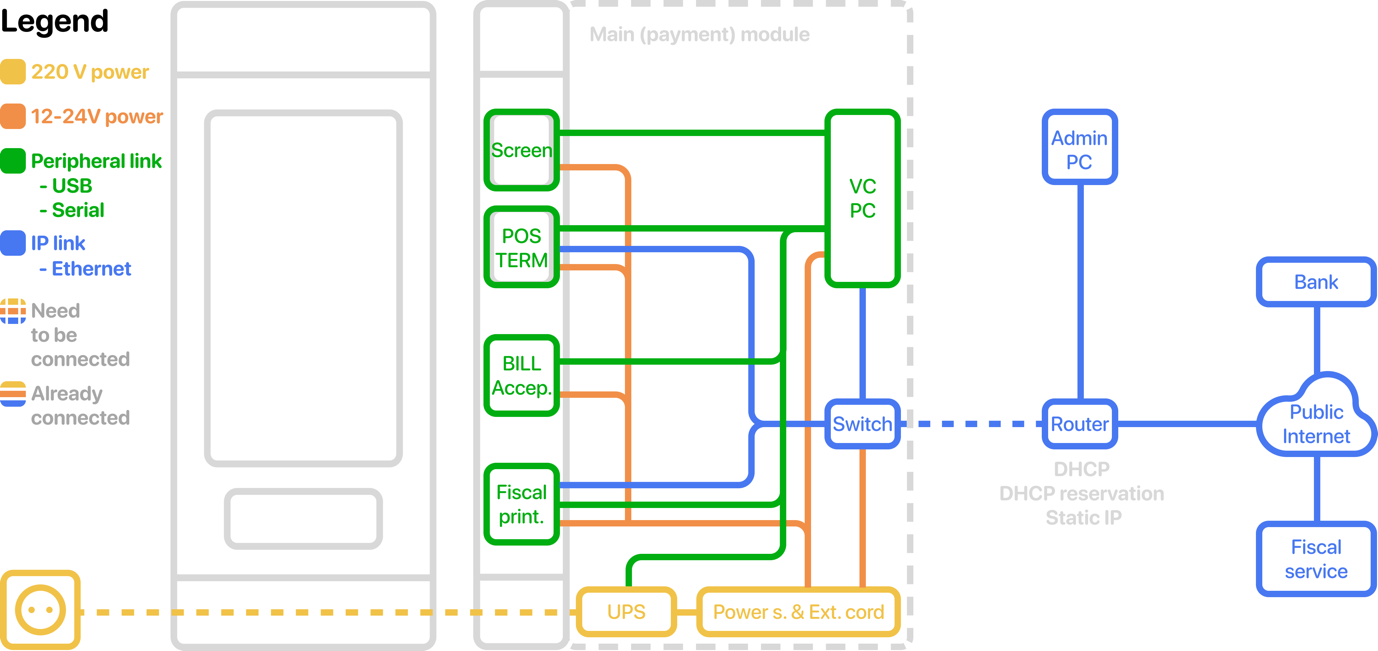

Connection Scheme

VC / PC -- vending controller

POS TERM -- payment terminal

Bill Accep. -- bill acceptor (option)

Fiscal print. -- fiscal printer (FP) (option depends on country)

Screen -- touch screen (display)

UPS -- uninterrupted power supply (option)

Power s. & Ext. cord -- power supply and extension cord (option)

Switch -- IP switch

Router -- IP router (option)

Admin PC -- administrator level 2 working place

Public Internet -- public internet

Fiscal Service -- fiscal service

Bank -- bank processing center

Attention! The machine requires connection to public internet for time synchronization, notifications, remote support, etc.
